Home > Products > 8.5 inch half diameter 213mm tire width 83 unilateral finale disc brake model 55 short shaft
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-9.jpg
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-2.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-3.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-4.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-6.jpg
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-7.jpg
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-disc-brake-model-55-short-shaft-8.jpg

retail price:
$
wholesale price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

6.5 inch diameter 172mm tire width 45 open 76 bilateral threaded shaft low-speed model
6.5 inch diameter 172mm tire width 45 open 76 bilateral threaded shaft low-speed model
A safe power solution tailored specifically for electric camping scenarios: Its compact 6.5-inch (172mm) diameter and 45mm tire width make it a perfect fit for the limited installation areas of camper vans and portable equipment. Its 76mm-gap opening and double-sided threaded shaft design allow for secure mounting by symmetrically tightening with both hands, eliminating the need for specialized tools. Even novice campers can quickly install it in 5 minutes, eliminating the hassles of traditional motors with complex wiring and unstable mounting.

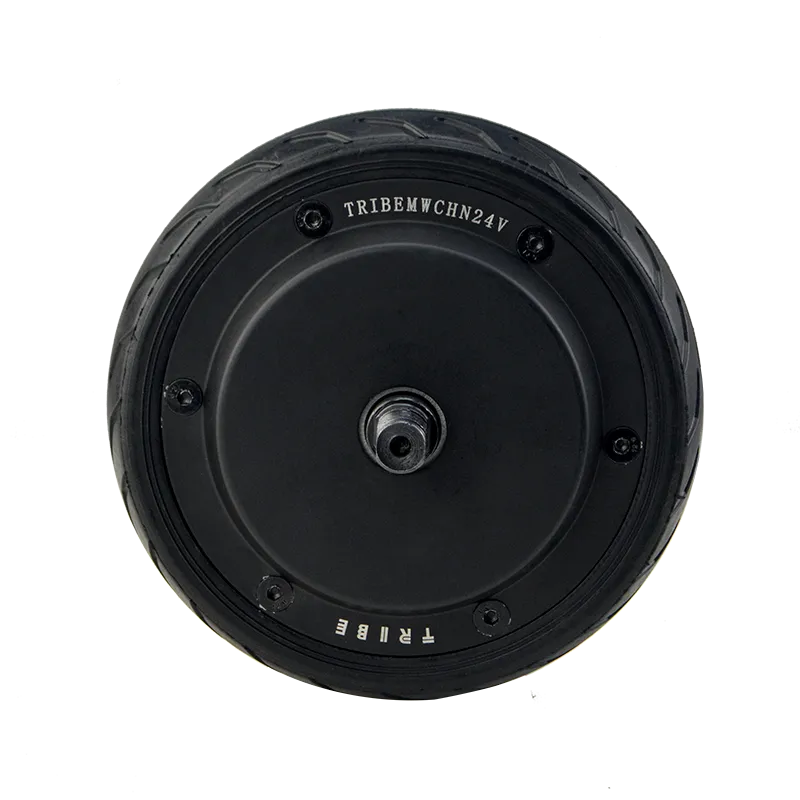

5.5 inch diameter 138mm tire width 39 opening 68 double-sided threaded shaft regular model
5.5 inch diameter 138mm tire width 39 opening 68 double-sided threaded shaft regular model
This 5.5-inch brushless DC hub motor, with a 138mm diameter and suitable for 39mm tire widths, features a 68mm gear ratio and a double-sided threaded shaft. Its conventional design balances adaptability and stability. Suitable for a variety of small and medium-sized equipment scenarios, it offers easy installation and stable performance.

Product Introduction

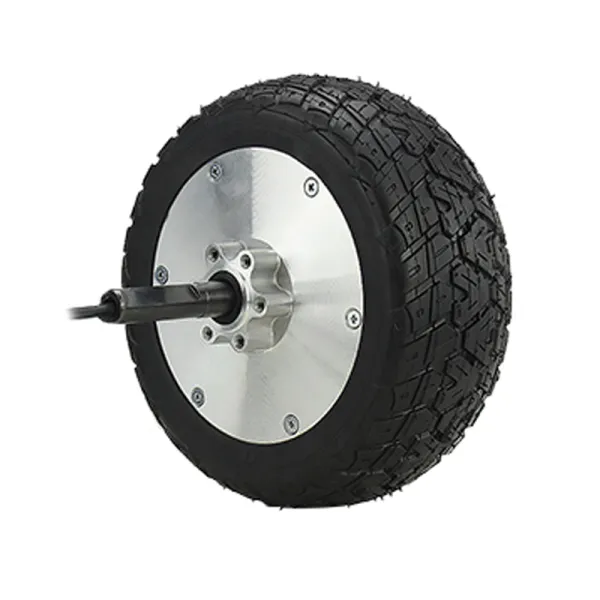

8.5-inch kart motor: 213mm diameter for 83mm tire width, single-side clamping axle + disc brake design, 55mm short axle for compact fit. High torque output and fast braking response, designed specifically for the speed and safety requirements of kart racing, enhancing the driving control experience.
Product Introduction
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

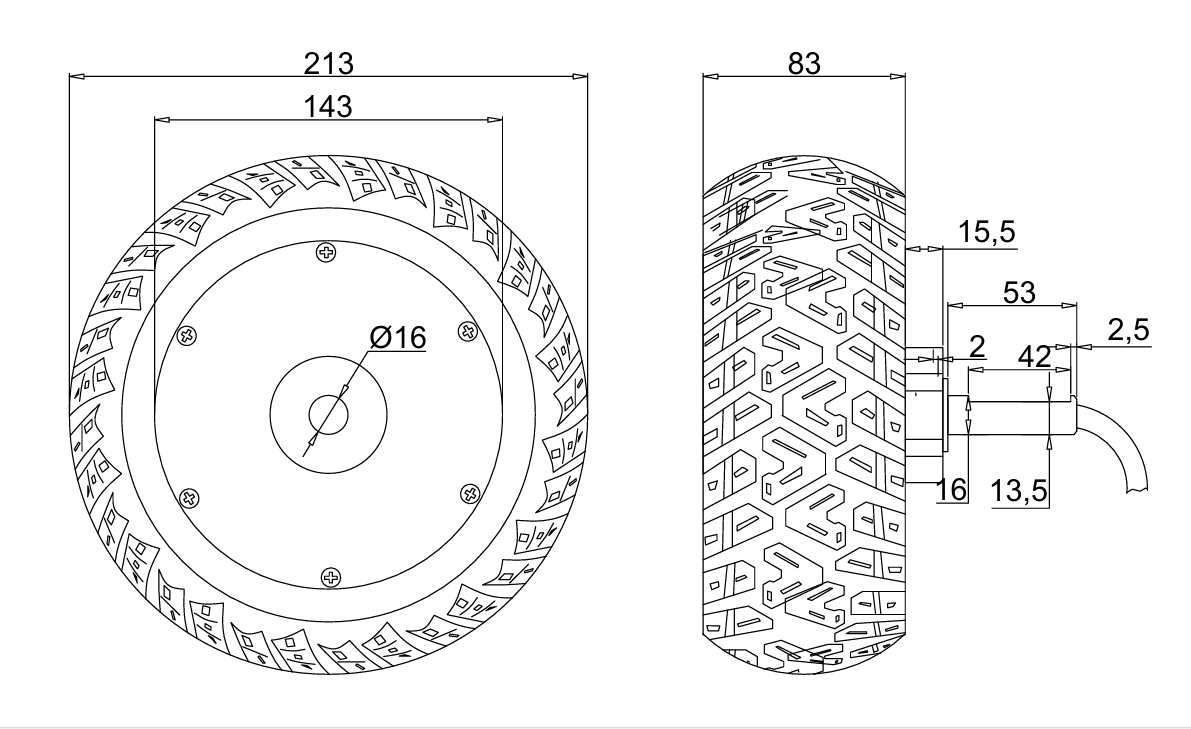

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 213mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36V
3 Rated power 350W
4 Rated rotating speed 600±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft mm
10 lead exposed 300mm
11 Size of connectors 3+6 waterproof head
12 Brake mode Electromagnetic brake
13 Shaft material 45cr
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20 to 65 degrees
Close

Related Products

10-inch diameter 250mm tire width 67 unilateral finale 115 short shaft model
10-inch diameter 250mm tire width 67 unilateral finale 115 short shaft model
6.5 inch diameter 172mm tire width 45 open 76 bilateral threaded shaft low-speed model
6.5 inch diameter 172mm tire width 45 open 76 bilateral threaded shaft low-speed model
10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
5.5 inch diameter 138mm tire width 39 opening 68 double-sided threaded shaft regular model
5.5 inch diameter 138mm tire width 39 opening 68 double-sided threaded shaft regular model

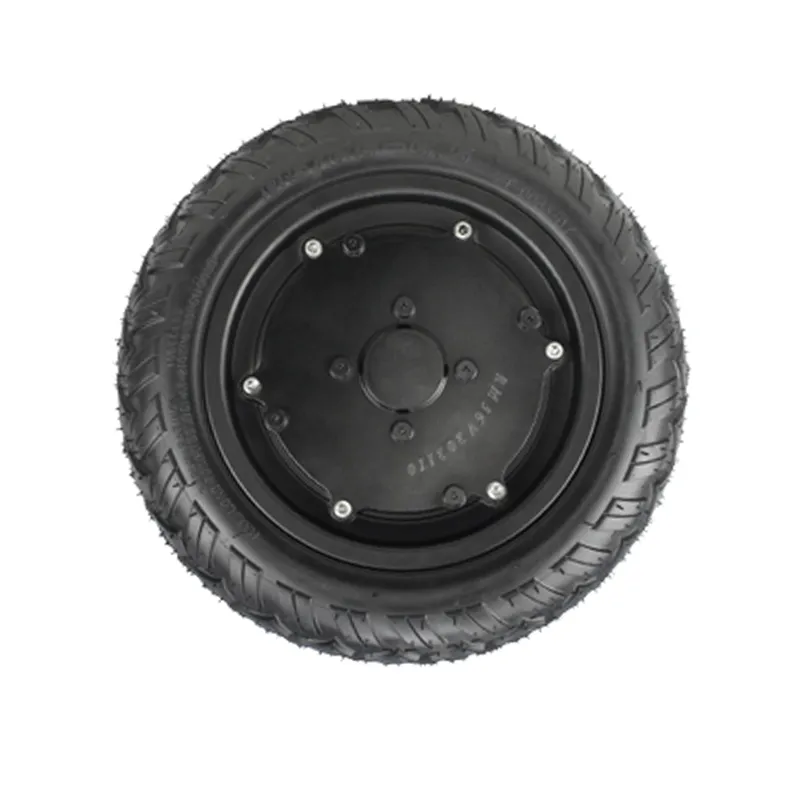

10-inch diameter 268mm tire width 87 single-side finale rice model
