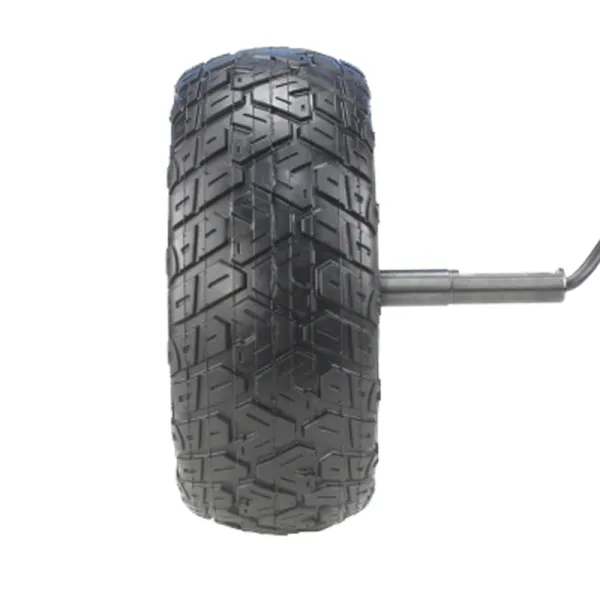

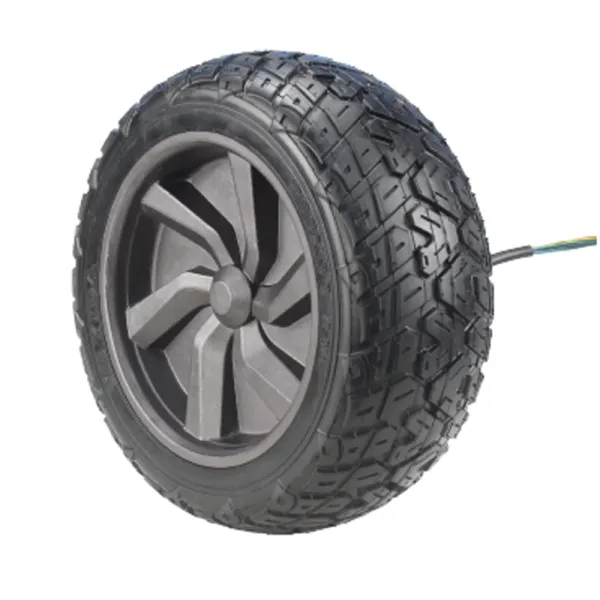

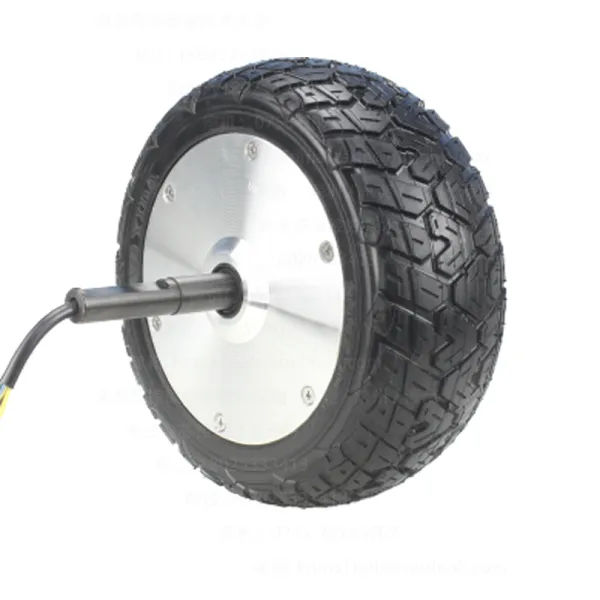

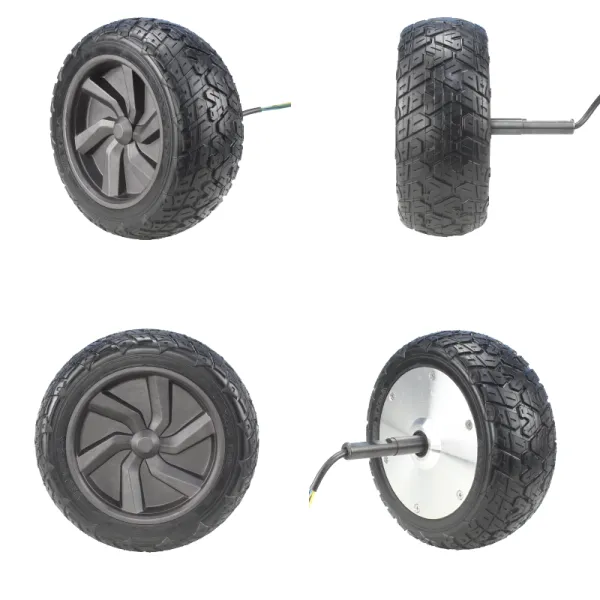

Home > Products > 8.5-inch diameter, 213mm tire width, 83mm single-sided pressure axle, 82mm long shaft motor
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-4.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-1.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-2.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-3.png
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-5.jpg

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

10-inch diameter 255mm tire width 65 single side axle 115 long axle kart
10-inch diameter 255mm tire width 65 single side axle 115 long axle kart
Custom go-kart tire and axle set: 10-inch specification (255mm diameter), 65mm wide tire, high wear resistance; 115mm long axle with a single-side axle clamping structure, the axle diameter precisely adapts to adult/youth karts, no additional hole modification is required for installation, and it supports batch customization to meet the purchasing needs of teams and venues!
8.5 inch half diameter 213mm tire width 83 unilateral finale disc brake model 55 short shaft
8.5 inch half diameter 213mm tire width 83 unilateral finale disc brake model 55 short shaft
8.5-inch kart motor: 213mm diameter for 83mm tire width, single-side clamping axle + disc brake design, 55mm short axle for compact fit. High torque output and fast braking response, designed specifically for the speed and safety requirements of kart racing, enhancing the driving control experience.
8-inch diameter 200mm tire width 84 unilateral finale conventional model
8-inch diameter 200mm tire width 84 unilateral finale conventional model
Custom 8-inch long-axis motor kit: Exclusively adapted for 200mm diameter x 84mm tire width, no secondary processing required. Single-sided press-axle construction enhances stability and provides efficient power transmission, making it suitable for small go-karts, leisure equipment, and other scenarios. Bulk purchases are supported, ensuring easy and time-saving installation.

Product Introduction

Custom go-kart tire and axle set: 10-inch specification (255mm diameter), 65mm wide tire for high wear resistance; 115mm long axle adopts a single-side axle structure, the axle diameter is precisely adapted to adult/youth karts, and no additional hole modification is required for installation. It supports batch customization to meet the purchasing needs of teams and venues!
8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-7.png

Advantages and features

The 65mm wide tire design enhances ground grip, preventing skidding during cornering and providing greater stability in straight-line driving, making it suitable for both racing and daily training scenarios. The high-wear-resistant tread combined with a single-sided axle structure improves the load-bearing capacity and impact resistance of the axle assembly, extending its service life by 30% compared to ordinary tire sets, reducing the frequency of replacements and downtime for teams/venues.
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 213mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36V
3 Rated power 350W
4 Rated rotating speed 500±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pole pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft (mm)
10 Lead exposed 300mm
11 Size of connectors 3+6 (pin configuration)
12 Brake mode Electromagnetic brake
13 Shaft material 45cr (alloy steel)
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20℃ to 65℃

Close

Common problem

Q： For bulk purchasing customers, how can we ensure the supply and customization services of 8-inch semi-diameter 213mm tires with a width of 83mm and a single-sided axle pressure of 82mm for long-wheelbase go-kart tires?
+
A： We offer flexible bulk customization solutions, leveraging our mature production system and stable supply chain to ensure timely order delivery. We also support customized specifications and configurations to meet the individual needs of various fleets and venues. Customization pricing is negotiable, transparent, and reasonable. We support professional-level wholesale partnerships, guaranteeing high-quality products and efficient service to build long-term collaborations.
Q： What are the main technical advantages of this 8-inch semi-diameter 213mm tire with a width of 83mm and a single-sided axle pressure of 82mm for long wheelbase electric go-karts?
+
A： This product features a 213mm diameter x 83mm tire width design, with a single-sided axle structure that effectively improves power transmission and assembly stability. The 115mm long axle precisely matches adult and youth go-karts, requiring no additional hole modifications and simplifying the installation process. The wear-resistant 65mm wide tire height ensures long-term stable operation. Bulk customization is supported to meet the diverse procurement needs of racing teams and venues, demonstrating the company's professional R&D and production capabilities.
