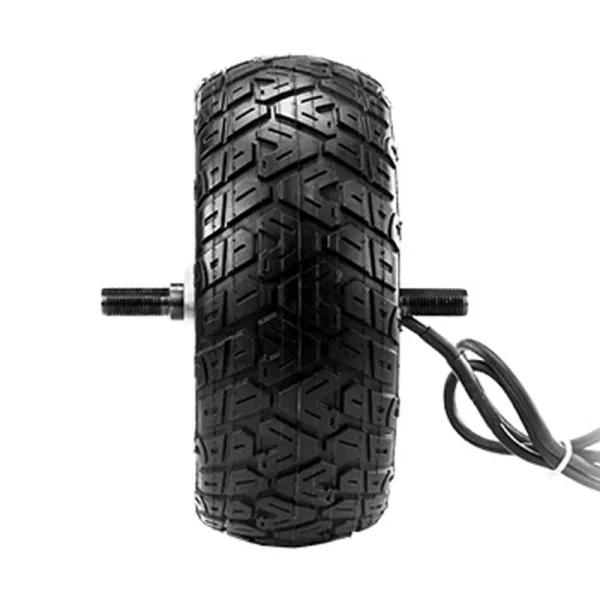

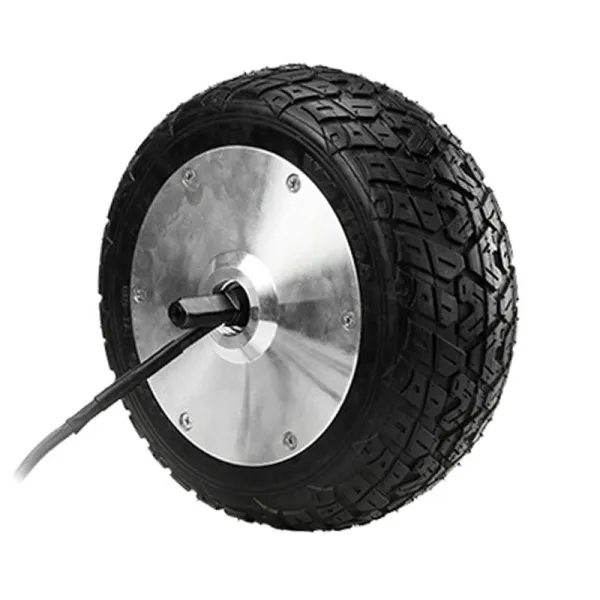

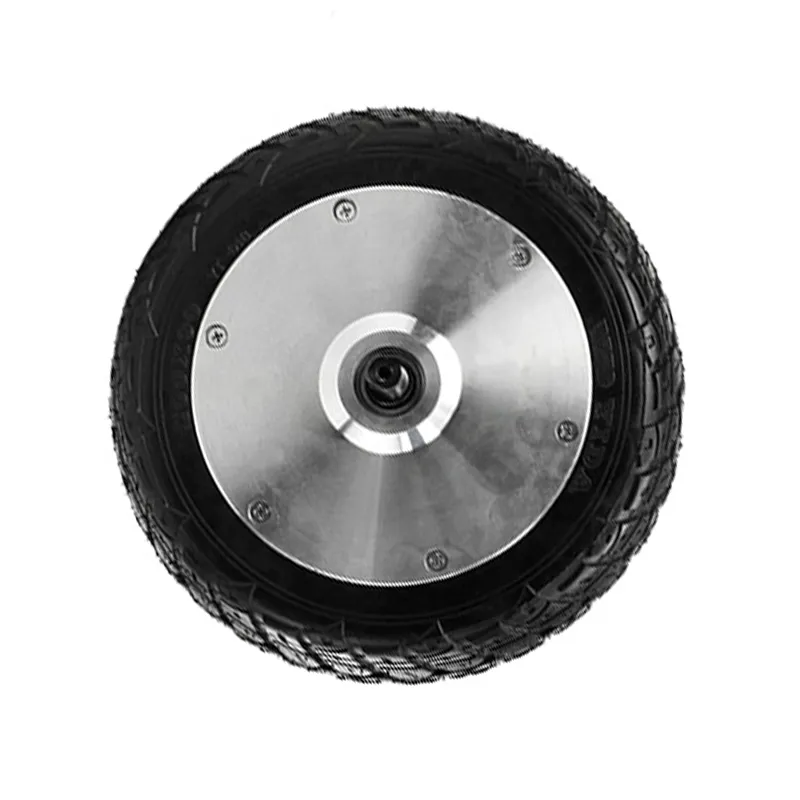

8-inch diameter 200mm tire width 83 open gear 110 bilateral threaded shaft
8-inch diameter 200mm tire width 83 open gear 110 bilateral threaded shaft
8-inch flatbed trolley motor: 200mm diameter for 83mm tire width, 100mm gear ratio, and double-sided threaded shaft for secure installation. Powerful and smooth operation, compatible with all types of flatbed trolleys, easily handling cargo transport scenarios.
4-inch 24v diameter 105mm tire width 42 opening 62 double-sided threaded shaft PU water guide groove model-Hall sensor
4-inch 24v diameter 105mm tire width 42 opening 62 double-sided threaded shaft PU water guide groove model-Hall sensor
The 24V rated voltage is compatible with commercial and industrial power supplies. Customizable widths of 105mm diameter x 42mm are available, along with PU water-conducting tires for enhanced slip resistance and wear resistance. A 62mm clearance and double-sided threaded shaft support standardized assembly, eliminating the need for secondary machining. Built-in Hall effect sensors provide high-precision speed and position feedback, making it suitable for applications such as warehousing, logistics, and industrial flatbed trucks. Customizable bulk purchases are available, meeting manufacturers' requirements for stable drive and precise speed control.

Product Introduction

8-inch flatbed trolley motor: 200mm diameter for 83mm tire width, 100mm gear ratio, and double-sided threaded shaft for secure installation. Powerful and smooth operation, compatible with all types of flatbed trolleys, easily handling cargo transport scenarios.
Product Introduction
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Number Projects Specification Remarks

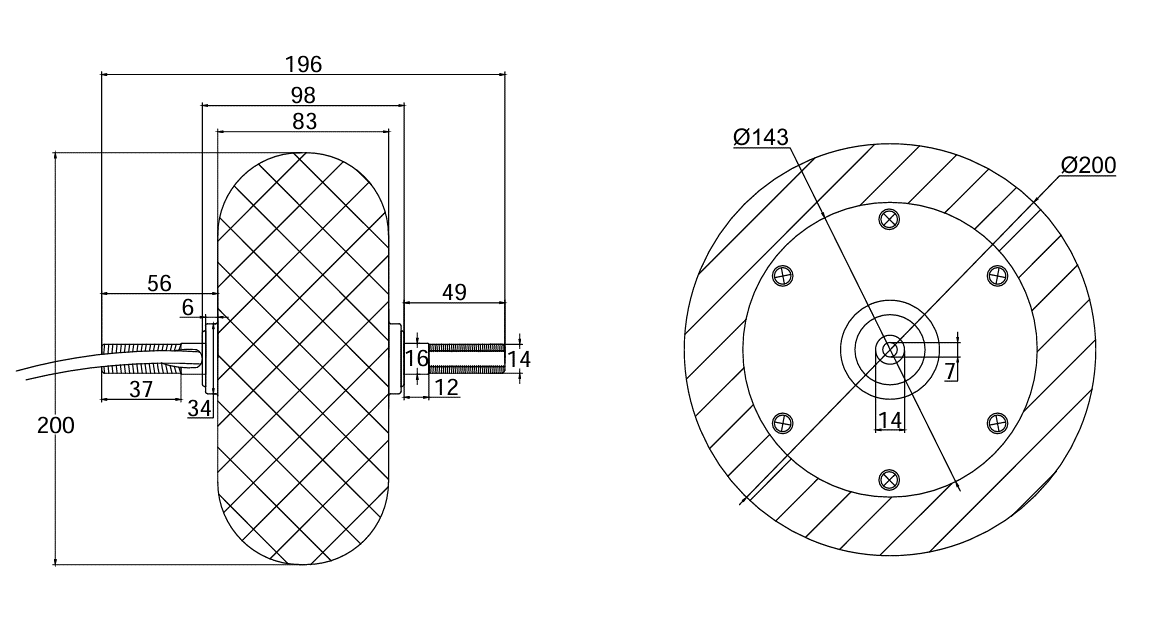

1 Motor diameter 200mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36V
3 Rated power 350W
4 Rated rotating speed 500±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft mm
10 lead exposed 300mm
11 Size of connectors 3+6 waterproof head
12 Brake mode Electromagnetic brake
13 Shaft material 45cr
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20 to 65 degrees
