8-inch diameter 200mm tire width 45 unilateral finale cyclone model-special for lawn mowers
8-inch diameter 200mm tire width 45 unilateral finale cyclone model-special for lawn mowers
8-inch lawn mower motor: 200mm diameter for 45mm tire width, single-side pressure shaft + cyclonic design, brushless and gearless construction for powerful power. Resists grass clippings and adapts to complex lawn terrain, securely installed, and efficiently drives mowing operations.

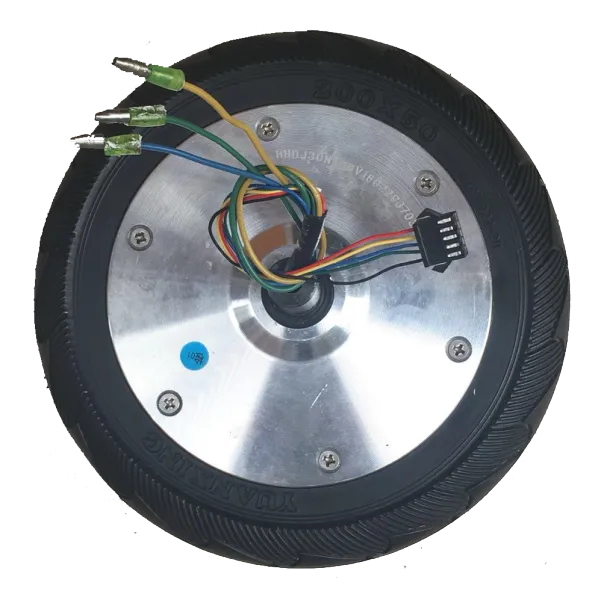

Product Introduction

8-inch lawn mower motor: 200mm diameter for 45mm tire width, single-side pressure shaft + cyclonic design, brushless and gearless construction for powerful power. Resists grass clippings and adapts to complex lawn terrain, securely installed, and efficiently drives mowing operations.
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

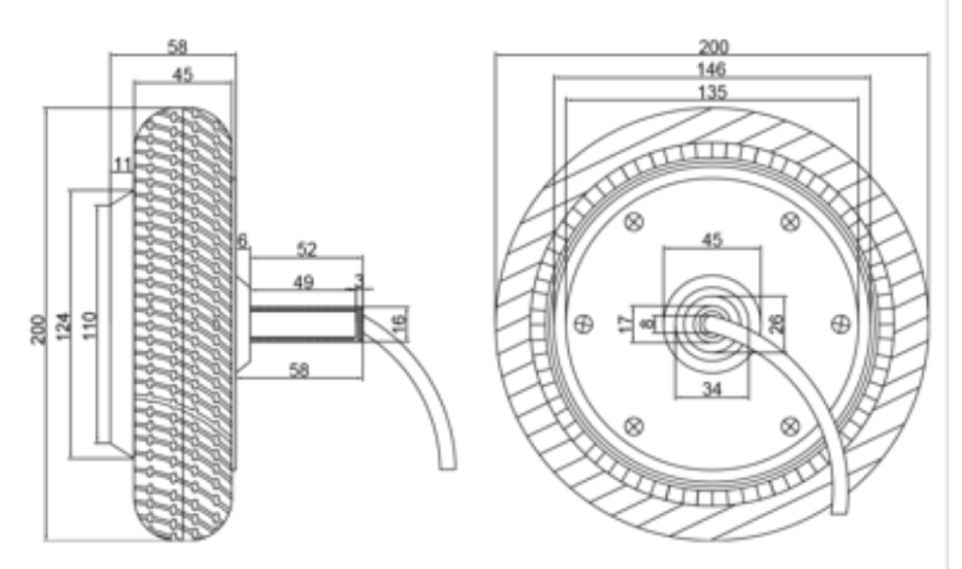

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 200mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 48V
3 Rated power 350W
4 Rated rotating speed 500±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft
10 lead exposed 300mm
11 Size of connectors 3+6 waterproof head
12 Brake mode Electromagnetic brake
13 Shaft material 45cr
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20 to 65 degrees
Close

Common problem

Q： If I want to purchase this motor in bulk, how can I contact your company to obtain a customized quote?
+
A： You are welcome to contact our sales team via the inquiry form at the bottom. Please provide your purchase quantity and specific requirements (such as packaging, labeling, delivery time, etc.), and we will quickly develop a customized solution for you and provide wholesale pricing. We support flexible cooperation models to ensure stable supply and professional service for large-volume orders.
Q： Why is this motor suitable for working on lawns in complex terrain? What are its core advantages?
+
A： Featuring a brushless, gearless structure and a single-sided pressure shaft design, this machine delivers more direct power and faster response. The cyclone design effectively prevents grass clippings from tangling and adapts to various terrains. A 200mm diameter tire fits a 45mm wide tire, ensuring stable installation and strong driving force, truly achieving a high-efficiency, low-maintenance lawn cleaning experience. We focus on details, ensuring every machine is trustworthy.
Q： What maintenance precautions should be taken when using the motor of this lawnmower?
+
A： To ensure long-term efficient operation of the motor, please regularly clean any remaining grass clippings from the cyclone structure to prevent blockages and reduced heat dissipation; check the tightness of the single-sided pressure shaft to prevent loosening that could lead to eccentric wear; it is recommended to perform an insulation test on the brushless motor quarterly, and keep the mounting surface clean and secure to extend its service life. We are committed to ensuring your work efficiency with reliable quality.
