Home > Products > 6.5 inch diameter 165mm tire width 90 open gear 115 double threaded axle camper special model
6.5-inch-diameter-165mm-tire-width-90-open-gear-115-double-threaded-axle-camper-special-model-3.png
6.5-inch-diameter-165mm-tire-width-90-open-gear-115-double-threaded-axle-camper-special-model-2.png
6.5-inch-diameter-165mm-tire-width-90-open-gear-115-double-threaded-axle-camper-special-model-4.png
6.5-inch-diameter-165mm-tire-width-90-open-gear-115-double-threaded-axle-camper-special-model-5.png
6.5-inch-diameter-165mm-tire-width-90-open-gear-115-double-threaded-axle-camper-special-model-6.png

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

6.5-inch diameter, 172mm tire width, 45mm opening, 76mm double-sided threaded shaft, low-speed motor.
6.5-inch diameter, 172mm tire width, 45mm opening, 76mm double-sided threaded shaft, low-speed motor.
A safe power solution tailored specifically for electric camping scenarios: Its compact 6.5-inch (172mm) diameter and 45mm tire width make it a perfect fit for the limited installation areas of camper vans and portable equipment. Its 76mm-gap opening and double-sided threaded shaft design allow for secure mounting by symmetrically tightening with both hands, eliminating the need for specialized tools. Even novice campers can quickly install it in 5 minutes, eliminating the hassles of traditional motors with complex wiring and unstable mounting.
6.5-inch diameter, 165mm tire width, 100mm opening, 115mm chamfer, dual-axis threaded motor specifically designed for campervans.
6.5-inch diameter, 165mm tire width, 100mm opening, 115mm chamfer, dual-axis threaded motor specifically designed for campervans.
6.5-inch camping motor: Exclusively compatible with 165mm diameter x 100mm tire width, the wider tire enhances adaptability to complex outdoor road conditions; 115mm tooth pitch + dual-axis thread structure, easy installation, firm connection, no secondary processing required; suitable for camping trailers, small campervans and other scenarios, supports bulk purchases, and meets the customization needs of camping equipment manufacturers!
6.5 inch diameter 165mm tire width 90 open gear 115 double threaded axle camper special model
6.5 inch diameter 165mm tire width 90 open gear 115 double threaded axle camper special model
6.5-inch motor for campers: Exclusively adapted for 165mm diameter x 90mm tire widths, wide tires improve adaptability to outdoor road conditions. A 100mm gap and dual-axis threaded structure eliminate the need for secondary processing for installation, ensuring a secure connection. Suitable for small camping trailers, camping vehicles, and more, this motor supports bulk purchases to meet the standardized assembly requirements of camping equipment manufacturers, saving both labor and worry!

Product Introduction

6.5-inch motor for campers: Exclusively adapted for 165mm diameter x 90mm tire widths, wide tires improve adaptability to outdoor road conditions. A 100mm gap and dual-axis threaded structure eliminate the need for secondary processing for installation, ensuring a secure connection. Suitable for small camping trailers, camping vehicles, and more, this motor supports bulk purchases to meet the standardized assembly requirements of camping equipment manufacturers, saving both labor and worry!

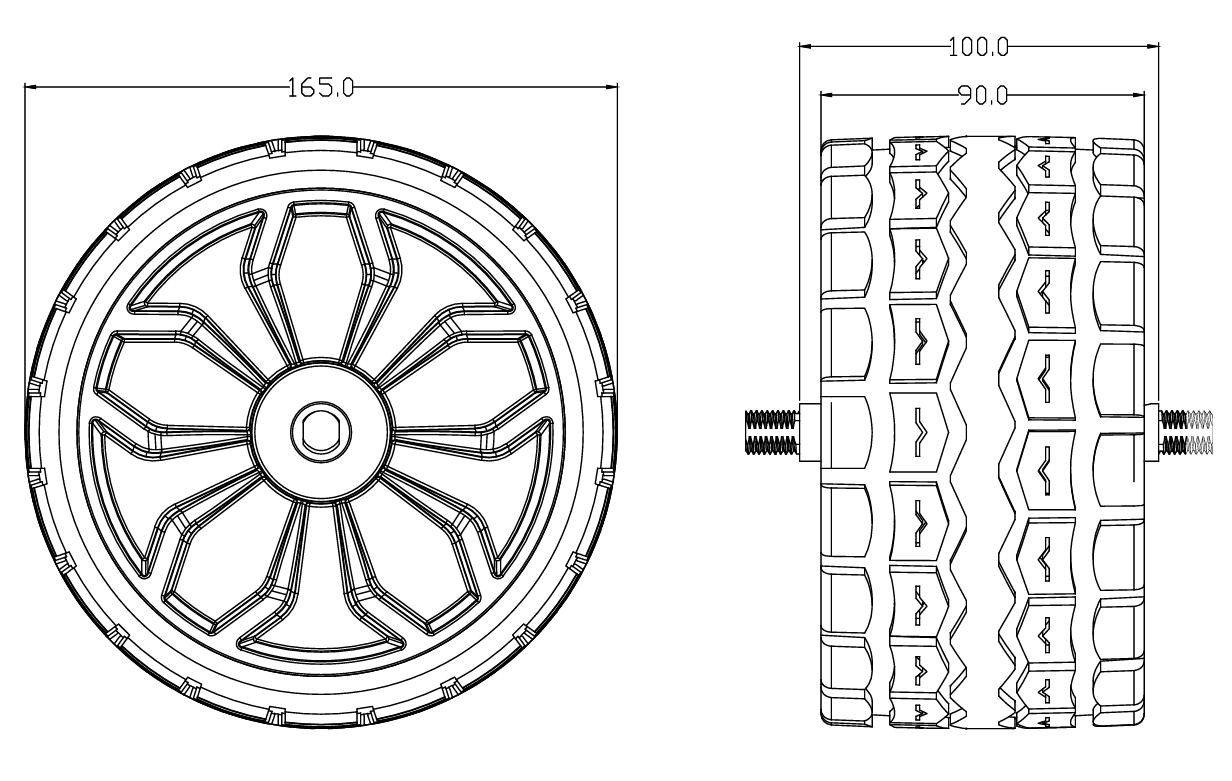

6.5-inch-diameter-165mm-tire-width-90-open-gear-115-double-threaded-axle-camper-special-model-1.png
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 165 mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 24 V
3 Rated power 200 W
4 Rated rotating speed 260±50 rpm
5 Rated current 4.5±0.5 A
6 Rated torque 6.9 N/M
7 Degree of phases 120°
8 Number of poles 30 poles
9 Out of the shaft Double-sided threaded shaft
10 Lead exposed 300mm
11 Size of connectors 3+6 waterproof connector
12 Brake mode Electromagnetic brake
13 Shaft material 45cr (alloy steel)
14 Waterproof rating IP58
15 Maximum load 100kg
16 Environmental requirements -20℃ to 65℃
Close

Common problem

Q： I am interested in purchasing your campervan motors in bulk. Could you please tell me the customization process and how to contact you?
+
A： Hello, for bulk purchases and customized services, you can contact us directly through our COMM transaction method. Our marketing team will communicate with you in detail regarding customization parameters and pricing to ensure that the product's features—no secondary processing, stable installation—fully meet your business needs. We welcome your customization requests and promise a timely response, ensuring delivery quality and efficiency.
Q： How do your products help customers reduce maintenance and usage costs?
+
A： This motor incorporates the company's newly developed technology, significantly reducing the failure rate of Hall sensors, thus decreasing maintenance frequency and related costs. The dual-axis thread design eliminates the need for secondary machining, saving assembly time and labor costs. Its customized dimensional matching also ensures rapid and standardized assembly, improving production efficiency and helping customers achieve cost control and efficient operation.
