Home > Products > 6.5-inch diameter, 165mm tire width, 100mm opening, 115mm chamfer, dual-axis threaded motor specifically designed for campervans.

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

6.5 inch diameter 172mm tire width 45 open 76 bilateral threaded shaft low-speed model
6.5 inch diameter 172mm tire width 45 open 76 bilateral threaded shaft low-speed model
A safe power solution tailored specifically for electric camping scenarios: Its compact 6.5-inch (172mm) diameter and 45mm tire width make it a perfect fit for the limited installation areas of camper vans and portable equipment. Its 76mm-gap opening and double-sided threaded shaft design allow for secure mounting by symmetrically tightening with both hands, eliminating the need for specialized tools. Even novice campers can quickly install it in 5 minutes, eliminating the hassles of traditional motors with complex wiring and unstable mounting.

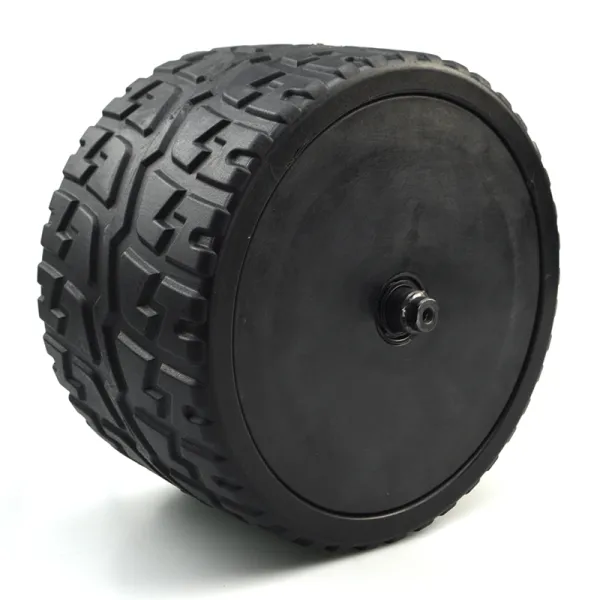

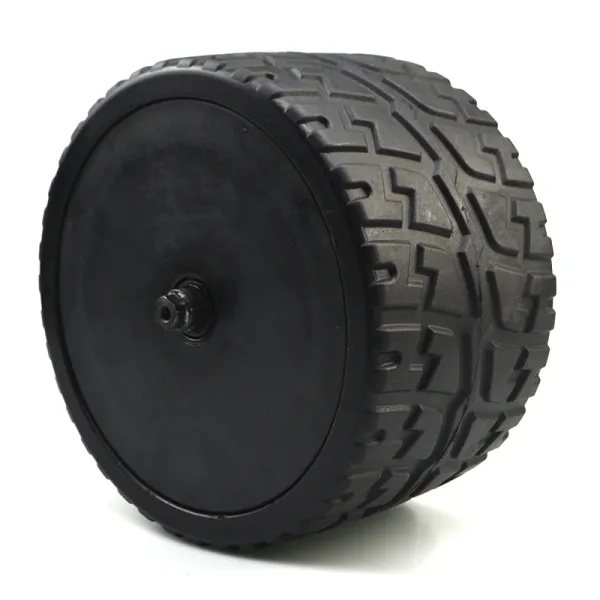

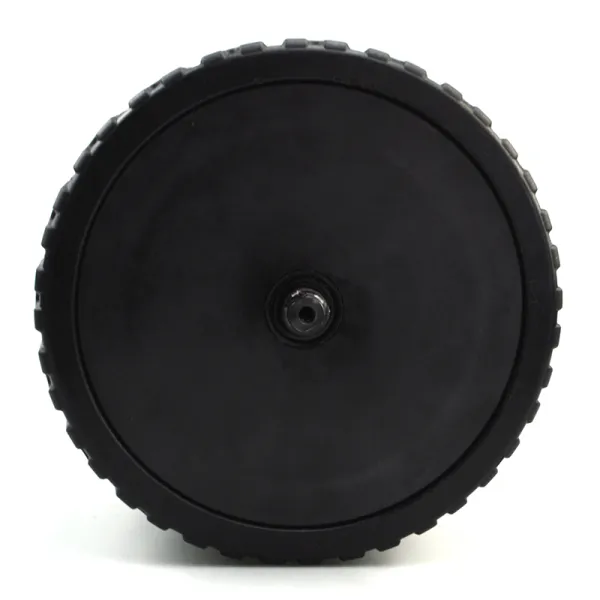

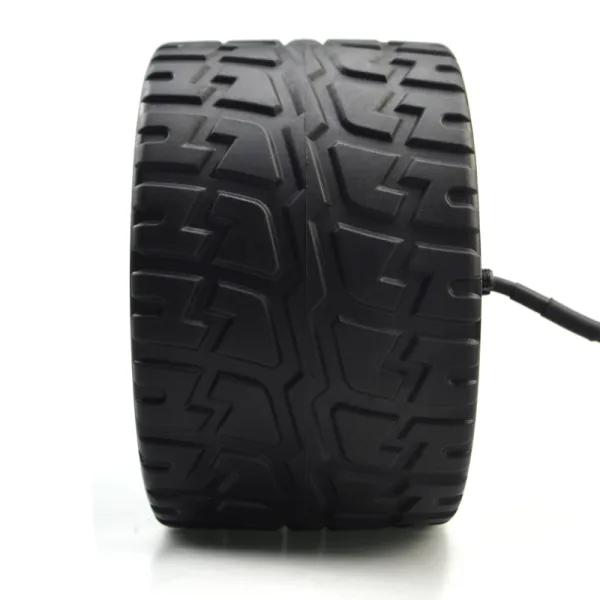

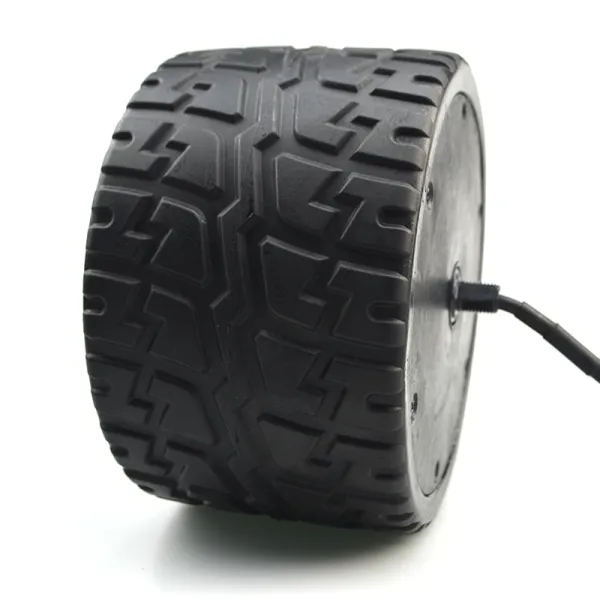

6.5 inch diameter 165mm tire width 100 opening 115 double shaft thread camper special model 1
6.5 inch diameter 165mm tire width 100 opening 115 double shaft thread camper special model 1
6.5-inch motor for campers: Exclusively compatible with 165mm diameter x 100mm tire width, wide tires enhance adaptability to complex outdoor road conditions; 115mm gear spacing + dual-axis threaded structure ensures easy installation and a secure connection without the need for secondary processing; suitable for camping trailers, small camping vehicles, and other scenarios, supporting bulk purchases to meet the customization needs of camping equipment manufacturers!

Product Introduction

6.5-inch camping motor: Exclusively compatible with 165mm diameter x 100mm tire width, the wider tire enhances adaptability to complex outdoor road conditions; 115mm tooth pitch + dual-axis thread structure, easy installation, firm connection, no secondary processing required; suitable for camping trailers, small campervans and other scenarios, supports bulk purchases, and meets the customization needs of camping equipment manufacturers!

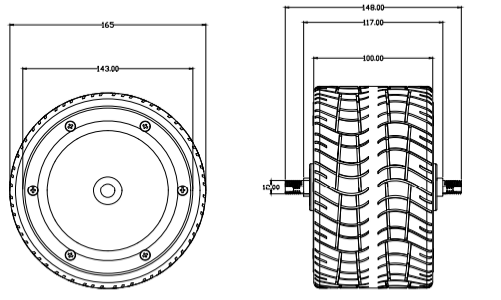

6.5-inch-half-diameter-165mm-tire-width-100-open-gear-115-double-threaded-axle-camper-special-model1-9.png
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 168 mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36 V
3 Rated power 350 W
4 Rated rotating speed 200±50 rpm
5 Rated current 6±0.5 A
6 Theoretical torque 20.13 N/M
7 Degree of phases 120°
8 Number of poles 30 poles

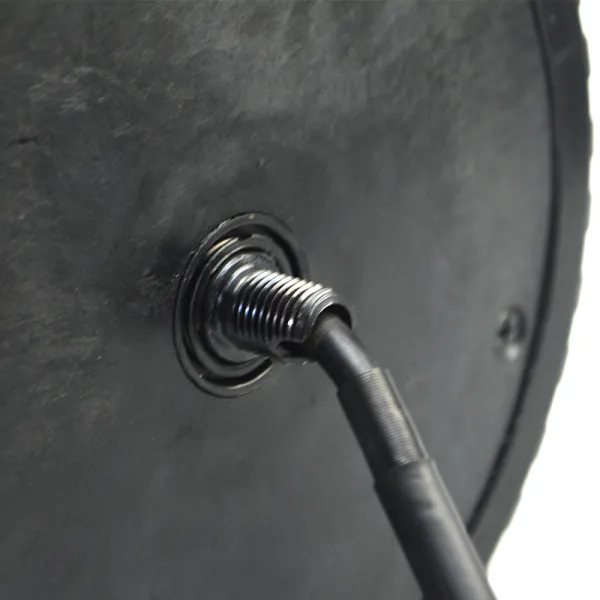

9 Out of the shaft Double-sided threaded shaft
10 Lead exposed 300mm

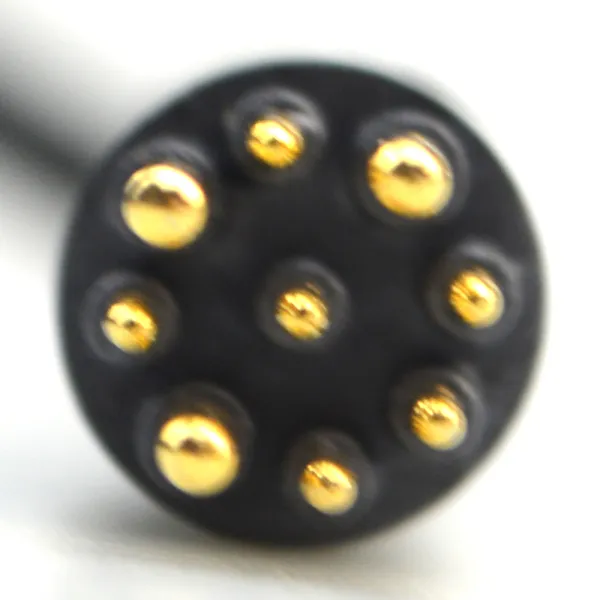

11 Size of connectors 3+6 waterproof connector
12 Brake mode Electromagnetic brake
13 Shaft material 45cr (alloy steel)
14 Waterproof rating IP58
15 Maximum load 120kg
16 Environmental requirements -20℃ to 65℃

Close

Common problem

Q： What are some key points to keep in mind when using this electric camping motor outdoors?
+
A： During installation, ensure the dual-axis threads are aligned with the campervan bracket to avoid uneven loading. Before starting, check that the 115mm gear opening matches the drive shaft to prevent slippage. It is recommended to perform a no-load test before first use to ensure smooth operation before using under load, thus guaranteeing safety and stable performance.
Q： How can you properly maintain this campervan-specific motor to extend its lifespan?
+
A： Regularly clean the dust from the motor surface, paying particular attention to ensuring the heat dissipation vents are clear. Check the dual-shaft threaded connection monthly for looseness or corrosion, and apply anti-rust oil if necessary. Avoid prolonged high-load operation; a full lubrication maintenance is recommended every 50 hours to improve reliability and durability.
