Home > Products > 5-inch diameter 130mm tire width 39mm gap 68mm double-sided threaded shaft low speed model - Hall sensor

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

4-inch diameter 105mm tire width 42 opening 62 double-sided threaded shaft PU water guide groove
4-inch diameter 105mm tire width 42 opening 62 double-sided threaded shaft PU water guide groove
4-inch motor specifically designed for smart luggage: 105mm diameter x 42mm width, custom-made to perfectly match luggage wheel specifications; PU tread with water guide grooves for enhanced anti-slip performance and durability in wet conditions; 62mm gear opening + double-sided threaded shaft, supporting standardized assembly, eliminating the need for secondary processing and ensuring efficient installation; suitable for smart towing and automatic following luggage
3-inch diameter 70mm tire width 55 center hole piercing PU yellow tire-Hall sensor
3-inch diameter 70mm tire width 55 center hole piercing PU yellow tire-Hall sensor
3-inch micro motor (PU yellow rubber Hall effect model): Exclusively adapted for 70mm diameter × 55mm tire width, the PU yellow rubber tread improves wear resistance and cushioning; the center through-hole shaft structure facilitates integrated installation, and the built-in Hall effect sensor achieves high-precision signal feedback. It is suitable for micro smart devices, precision transmission scenarios, etc., and supports bulk purchase to meet the core needs of equipment manufacturers for "small size + high precision"!
5.5 inch diameter 138mm tire width 39 opening 68 double-sided threaded shaft regular model
5.5 inch diameter 138mm tire width 39 opening 68 double-sided threaded shaft regular model
This 5.5-inch brushless DC hub motor, with a 138mm diameter and suitable for 39mm tire widths, features a 68mm gear ratio and a double-sided threaded shaft. Its conventional design balances adaptability and stability. Suitable for a variety of small and medium-sized equipment scenarios, it offers easy installation and stable performance.

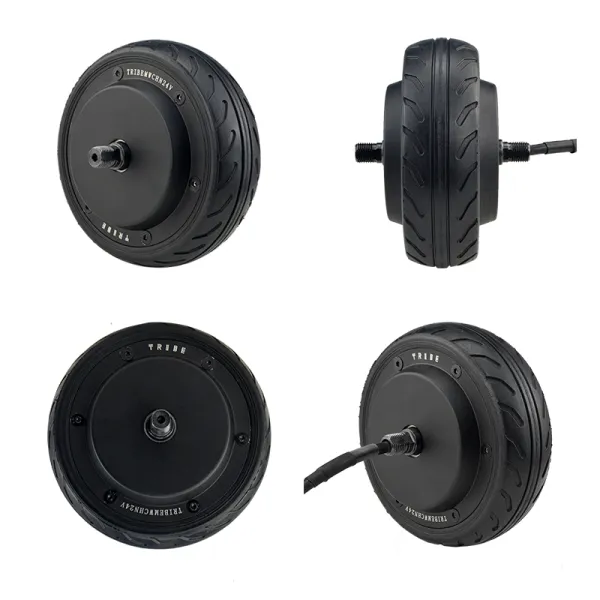

5-inch diameter 130mm tire width 39mm gap 68mm double-sided threaded shaft low speed model - Hall sensor
5-inch diameter 130mm tire width 39mm gap 68mm double-sided threaded shaft low speed model - Hall sensor
5-inch low-speed motor: 130mm diameter for 39mm tire width, 68+ gear opening, double-sided threaded shaft design, built-in Hall effect sensor, precise speed control. Ideal for small equipment and precision scenes, it features stable installation, low speed stability, quiet operation, and durability.

Product Introduction

5-inch low-speed motor: 130mm diameter for 39mm tire width, 68+ gear opening, double-sided threaded shaft design, built-in Hall effect sensor, precise speed control. Ideal for small equipment and precision scenes, it features stable installation, low speed stability, quiet operation, and durability.

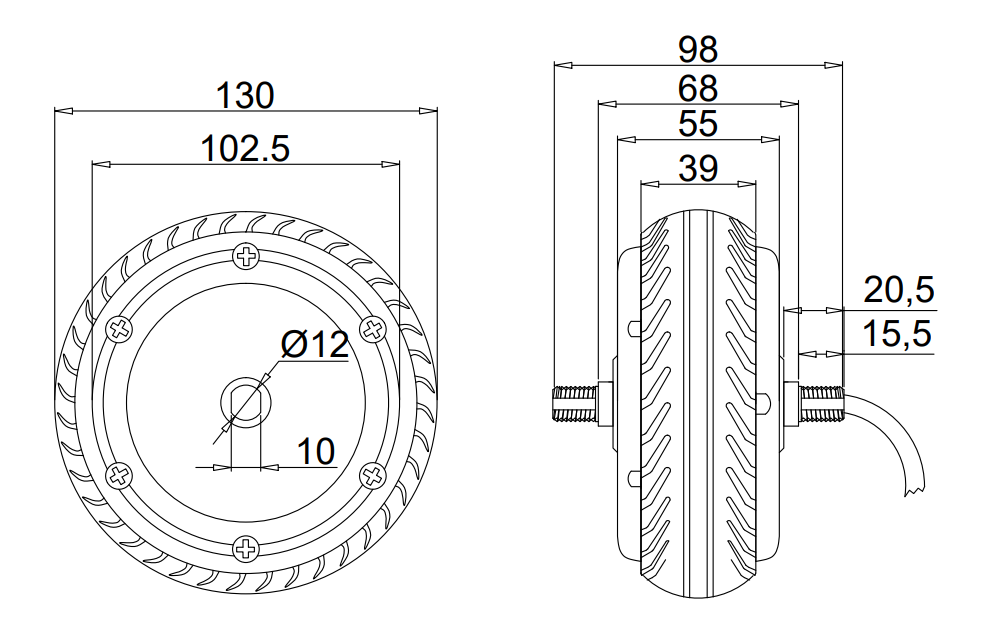

5-inch-diameter-130mm-tire-width-39-open-68-bilateral-thread-low-speed-mode-hall-sensor-5.png
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 130mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 24V
3 Rated power 200W
4 Rated rotating speed 200±50rpm
5 Rated current 5±0.5A
6 Theoretical torque 8.7N/M
7 Degree of phases 120°
8 Number of poles 10 pole pairs 20PCS
9 Out of the shaft Double-threaded shaft (mm)
10 Lead exposed 300mm
11 Size of connectors 3+6 waterproof connector
12 Brake mode Electromagnetic brake
13 Shaft material 45cr (alloy steel)
14 Waterproof rating IP55
15 Maximum load 100kg
16 Environmental requirements -20℃ to 65℃

Close

Common problem

Q： In which specific scenarios is this electric luggage motor suitable?
+
A： This motor is designed specifically for small, precision equipment, such as high-end electric luggage, medical carts, and industrial mobile platforms. Its 130mm diameter and 39mm tire width provide a stable structure, while the double-threaded shaft ensures precise positioning. Hall effect sensing enables smooth low-speed operation, meeting the quiet and durable requirements of demanding applications.
Q： How can we ensure the stability of a motor during long-term use?
+
A： Employing high-quality magnets and precision winding technology, coupled with a Hall closed-loop speed control system, it effectively suppresses low-speed vibration; the double-sided threaded shaft design enhances installation rigidity; the entire machine has passed high and low temperature cycle tests and load durability verification to ensure long-term stable and quiet operation, with a lifespan exceeding industry standards.
