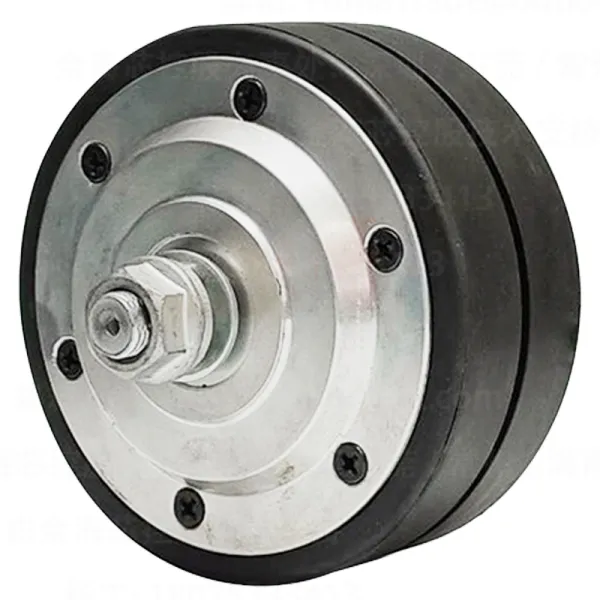

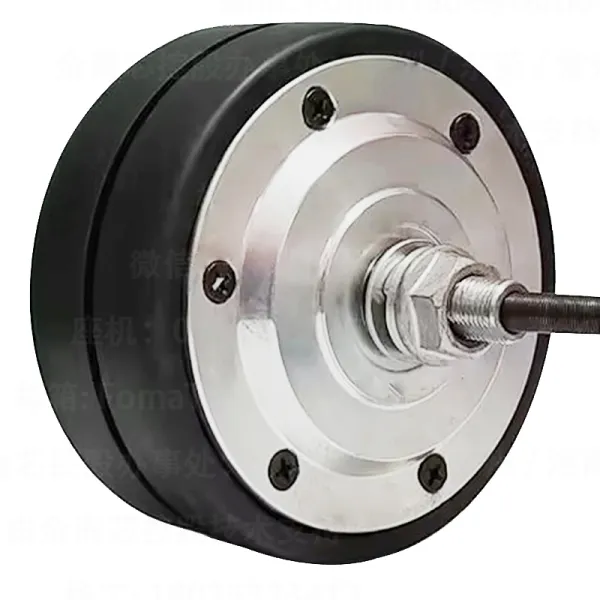

4-inch diameter 105mm tire width 42 open 62 bilateral threaded shaft PU water guide tank model-dedicated for ball machine
4-inch diameter 105mm tire width 42 open 62 bilateral threaded shaft PU water guide tank model-dedicated for ball machine
The power core is specially designed for ball machines: 4 inches (105mm) in diameter matches the 42 tire width. It is compact and does not take up space. It fits perfectly into the internal structure of various table tennis and badminton ball machines.

Product Introduction

The power core is specially designed for ball machines: 4 inches (105mm) in diameter matches the 42 tire width. It is compact and does not take up space. It fits perfectly into the internal structure of various table tennis and badminton ball machines.
Product Introduction
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Serial number project Specification Remark

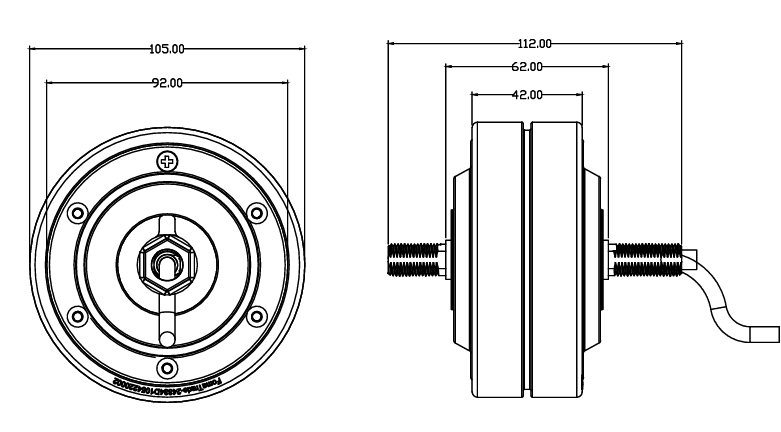

1 Motor diameter 105mm (including slight deviation in tire size) The actual product shall prevail
2 Rated voltage 24V
3 Rated power 250W
4 Rated speed 1800±50rpm
5 Rated current 6±0.5A
6 Maximum torque 4.8 N/M
7 Hall Angle 120°
8 Number of magnetic poles 20 poles
9 Shaft output method Double-sided threaded shaft mm
10 Lead length 500mm
11 Lead terminals 3+6 waterproof head
12 Braking method electromagnetic brake
13 Steel shaft material 45cr
14 Waterproof grade IP55
15 Maximum load 100kg
16 Environmental requirements -20 to 65 degrees
