Home > Products > 10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
10.5-inch-diameter-270mm-tire-width-78-unilateral-finale-big-galloping-horse-model-5.png
10.5-inch-diameter-270mm-tire-width-78-unilateral-finale-big-galloping-horse-model-3.png

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

8-inch diameter 200mm tire width 45 unilateral finale cyclone model-special for lawn mowers
8-inch diameter 200mm tire width 45 unilateral finale cyclone model-special for lawn mowers
8-inch lawn mower motor: 200mm diameter for 45mm tire width, single-side pressure shaft + cyclonic design, brushless and gearless construction for powerful power. Resists grass clippings and adapts to complex lawn terrain, securely installed, and efficiently drives mowing operations.
10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
A power core tailor-made for cutting large lawns: 10.5-inch (270mm) diameter with 78mm wide tires, no slipping when driving on muddy and sloping lawns, and significantly improved grip stability; single-sided pressure axle + large-Benma optimized structure, enhanced axle load-bearing capacity, suitable for heavy-duty lawn mowers, anti-bumping and body shaking during high-speed cutting.
10-inch diameter 268mm tire width 87 single-side finale rice model
10-inch diameter 268mm tire width 87 single-side finale rice model
10-inch lawn mower motor: 250mm diameter, 67mm tire width, single-sided pressed shaft + 115mm short shaft design, brushless construction, and powerful power. The short shaft design is suitable for compact models, preventing grass clippings from entanglement, and easily handles various lawn terrains, driving efficient mowing operations.

Product Introduction

A power core tailor-made for cutting large lawns: 10.5-inch (270mm) diameter with 78mm wide tires, no slipping when driving on muddy and sloping lawns, and significantly improved grip stability; single-sided pressure axle + large-Benma optimized structure, enhanced axle load-bearing capacity, suitable for heavy-duty lawn mowers, anti-bumping and body shaking during high-speed cutting.

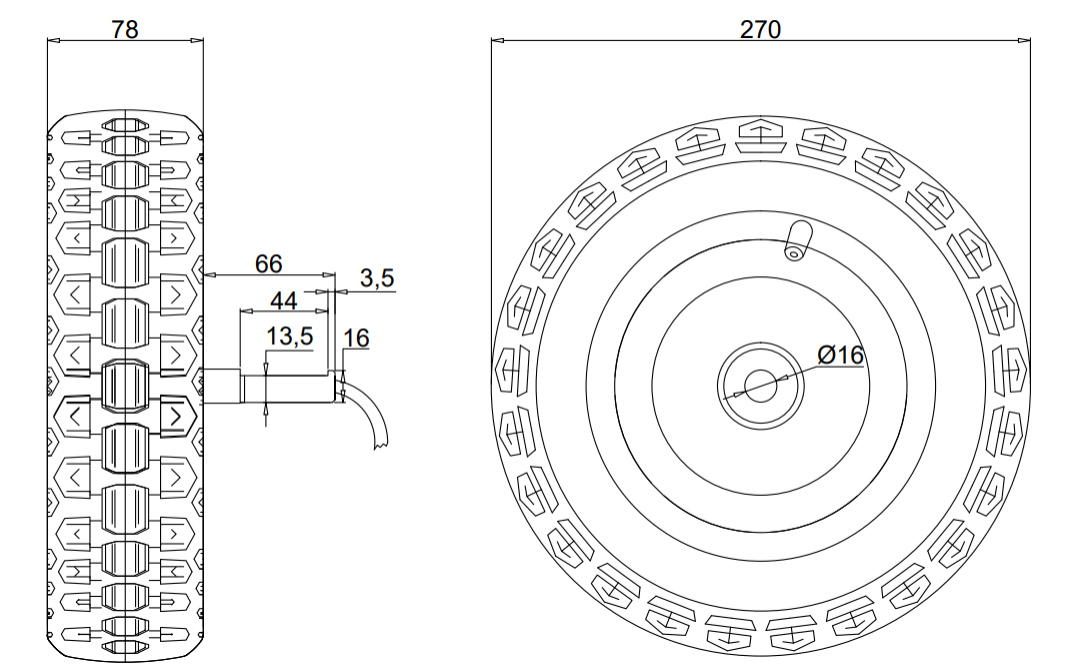

10.5-inch-diameter-270mm-tire-width-78-unilateral-finale-big-galloping-horse-model-8.png
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Serial number project Specification Remark
1 Motor diameter 270mm (including slight deviation in tire size) The actual product shall prevail
2 Rated voltage 36V
3 Rated power 350W
4 Rated speed 500±50rpm
5 Rated current 8±0.5A
6 Maximum torque 15.9N/M
7 Hall Angle 120°
8 Number of magnetic poles 15 Antipodes 30 PCS
9 Shaft output method Single-sided D-shaped roller mm
10 Lead length 300mm
11 Lead terminals 3+6 waterproof head
12 Braking method electromagnetic brake
13 Steel shaft material 45cr
14 Waterproof grade IP55
15 Maximum load 120kg
16 Environmental requirements -20 to 65 degrees
Close

Common problem

Q： In what scenarios is this lawnmower motor suitable for use?
+
A： This 10.5-inch "Galloping Horse" motor is designed specifically for large lawns. Its 270mm diameter and 78mm wide tires ensure stable grip on muddy, sloping, and other complex terrains, making it particularly suitable for high-efficiency operations in landscaping, golf courses, and large residential areas. Optimized structure enhances load-bearing capacity, adapting to heavy equipment and ensuring stable and reliable operation during high-speed cutting.
Q： Does this motor support customization services?
+
A： Yes, we offer customization services, adjusting parameters to meet the specific needs of our clients and adapt to different lawnmower models. Wholesale and customized prices are currently under negotiation. We will provide the optimal solution based on order size to ensure both product compatibility and cost-effectiveness.
Q： Why can choosing this motor improve work efficiency?
+
A： Its single-sided pressure shaft design, combined with the reinforced structure of the "Galloping Horse" model, significantly enhances the shaft's torsional resistance and load-bearing capacity, maintaining stable power output and reducing failure rates even during prolonged high-load operation. Combined with a large 270mm diameter and 78mm wide tires, it effectively reduces the risk of slippage, improving mowing efficiency and operational continuity.

Related Products

6.5-inch diameter, 172mm tire width, 45mm opening, 76mm double-sided threaded shaft, low-speed motor.
6.5-inch diameter, 172mm tire width, 45mm opening, 76mm double-sided threaded shaft, low-speed motor.

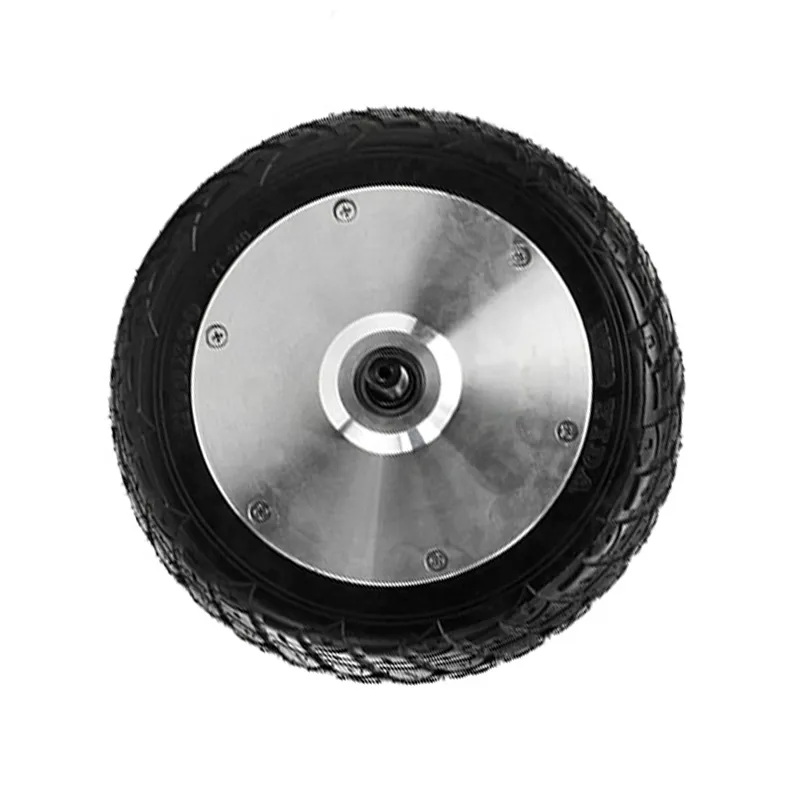

8-inch diameter 200mm tire width 83 open gear 110 bilateral threaded shaft
