Home > Products > 10-inch diameter 268mm tire width 87 single-side finale rice model

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

8-inch diameter 200mm tire width 45 unilateral finale cyclone model-special for lawn mowers
8-inch diameter 200mm tire width 45 unilateral finale cyclone model-special for lawn mowers
8-inch lawn mower motor: 200mm diameter for 45mm tire width, single-side pressure shaft + cyclonic design, brushless and gearless construction for powerful power. Resists grass clippings and adapts to complex lawn terrain, securely installed, and efficiently drives mowing operations.
10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
10.5-inch diameter 270mm tire width 78 single-sided finale big horse model
A power core tailor-made for cutting large lawns: 10.5-inch (270mm) diameter with 78mm wide tires, no slipping when driving on muddy and sloping lawns, and significantly improved grip stability; single-sided pressure axle + large-Benma optimized structure, enhanced axle load-bearing capacity, suitable for heavy-duty lawn mowers, anti-bumping and body shaking during high-speed cutting.

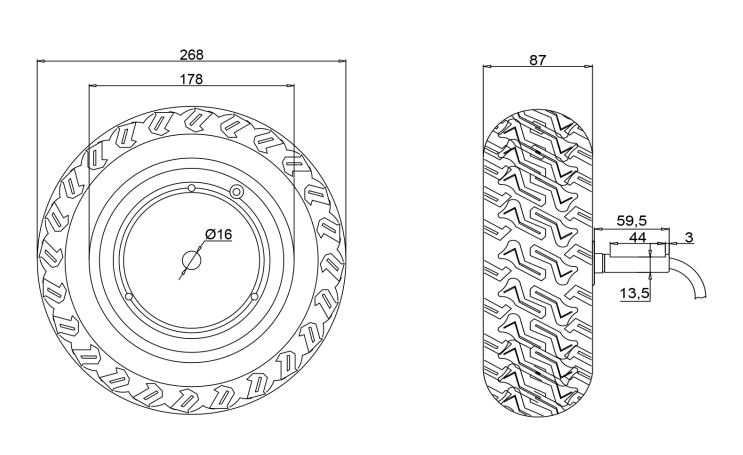

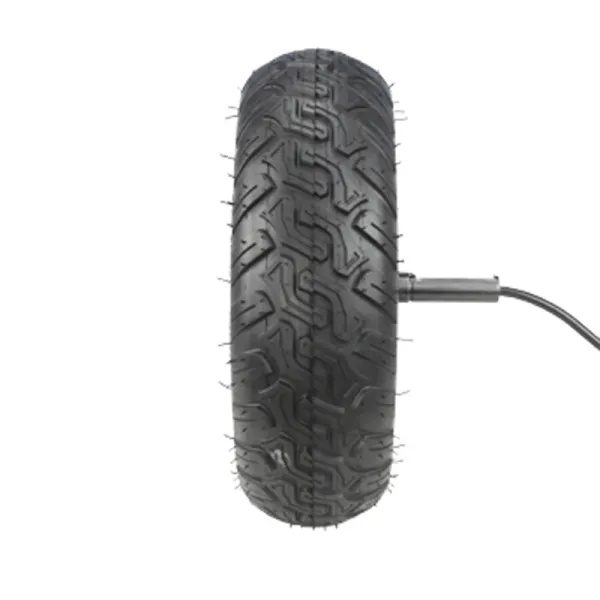

10-inch diameter 268mm tire width 87 single-side finale rice model
10-inch diameter 268mm tire width 87 single-side finale rice model
10-inch lawn mower motor: 250mm diameter, 67mm tire width, single-sided pressed shaft + 115mm short shaft design, brushless construction, and powerful power. The short shaft design is suitable for compact models, preventing grass clippings from entanglement, and easily handles various lawn terrains, driving efficient mowing operations.

Product Introduction

10-inch lawn mower motor: 250mm diameter, 67mm tire width, single-sided pressed shaft + 115mm short shaft design, brushless construction, and powerful power. The short shaft design is suitable for compact models, preventing grass clippings from entanglement, and easily handles various lawn terrains, driving efficient mowing operations.
Product Introduction
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 268mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36V
3 Rated power 350W
4 Rated rotating speed 500±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft mm
10 lead exposed 300mm
11 Size of connectors 3+6 waterproof head
12 Brake mode Electromagnetic brake
13 Shaft material 45cr
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20 to 65 degrees
