Home > Products > 10-inch diameter 255mm tire width 65 single side axle 115 long axle kart

retail price:
$
Wholesale Price:
To be discussed
Customized price:
To be discussed
Custom made:
Tire
Fixed axis method
Wirewound resistor
Connectors
Wheels

Recommended Products

8.5 inch half diameter 213mm tire width 83 unilateral finale disc brake model 55 short shaft
8.5 inch half diameter 213mm tire width 83 unilateral finale disc brake model 55 short shaft
8.5-inch kart motor: 213mm diameter for 83mm tire width, single-side clamping axle + disc brake design, 55mm short axle for compact fit. High torque output and fast braking response, designed specifically for the speed and safety requirements of kart racing, enhancing the driving control experience.

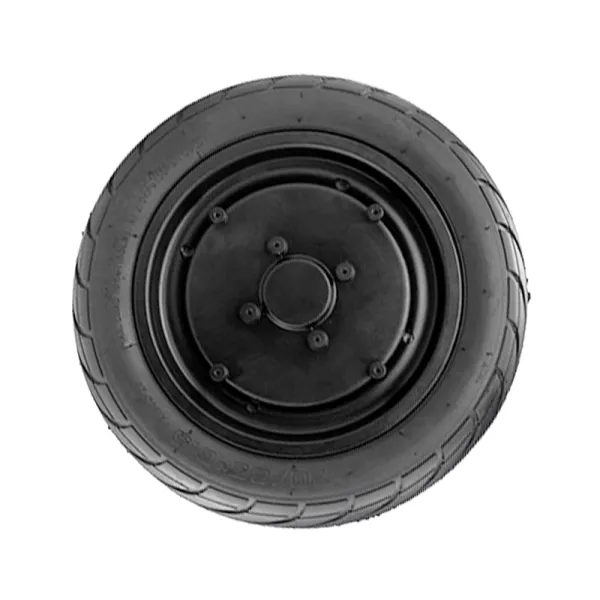

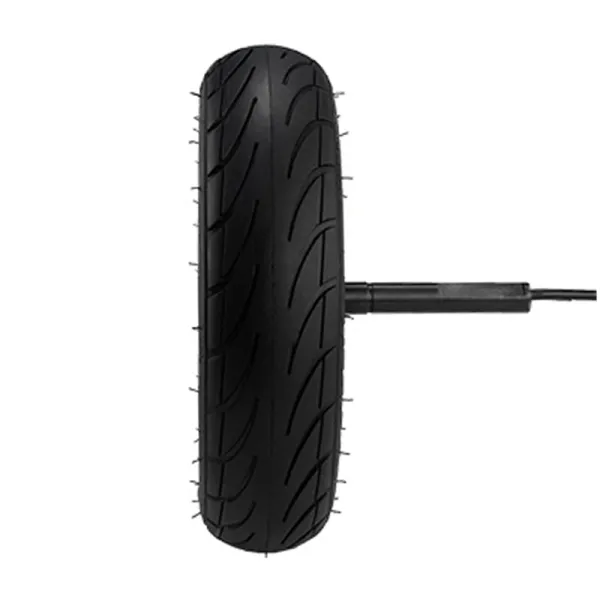

10-inch diameter 255mm tire width 65 single side axle 115 long axle kart
10-inch diameter 255mm tire width 65 single side axle 115 long axle kart
Custom go-kart tire and axle set: 10-inch specification (255mm diameter), 65mm wide tire, high wear resistance; 115mm long axle with a single-side axle clamping structure, the axle diameter precisely adapts to adult/youth karts, no additional hole modification is required for installation, and it supports batch customization to meet the purchasing needs of teams and venues!

Product Introduction

Custom go-kart tire and axle set: 10-inch specification (255mm diameter), 65mm wide tire, high wear resistance; 115mm long axle with a single-side axle clamping structure, the axle diameter precisely adapts to adult/youth karts, no additional hole modification is required for installation, and it supports batch customization to meet the purchasing needs of teams and venues!
Product Introduction

Product Parameters

The main parameters

Number Projects Specification Remarks
1 Motor diameter 255mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 54V
3 Rated power 350W
4 Rated rotating speed 500±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pole pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft (mm)
10 Lead exposed 500mm
11 Size of connectors 3+6 waterproof connector
12 Brake mode Electromagnetic brake
13 Shaft material 45cr (alloy steel)
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20℃ to 65℃
Close
Installation Instructions
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure
